DESCRIPTION

Lusithand's Filter preamps, unlike common EQ/Preamps, allow you to completely change the signature sound of your pickups by shifting its resonant peak.

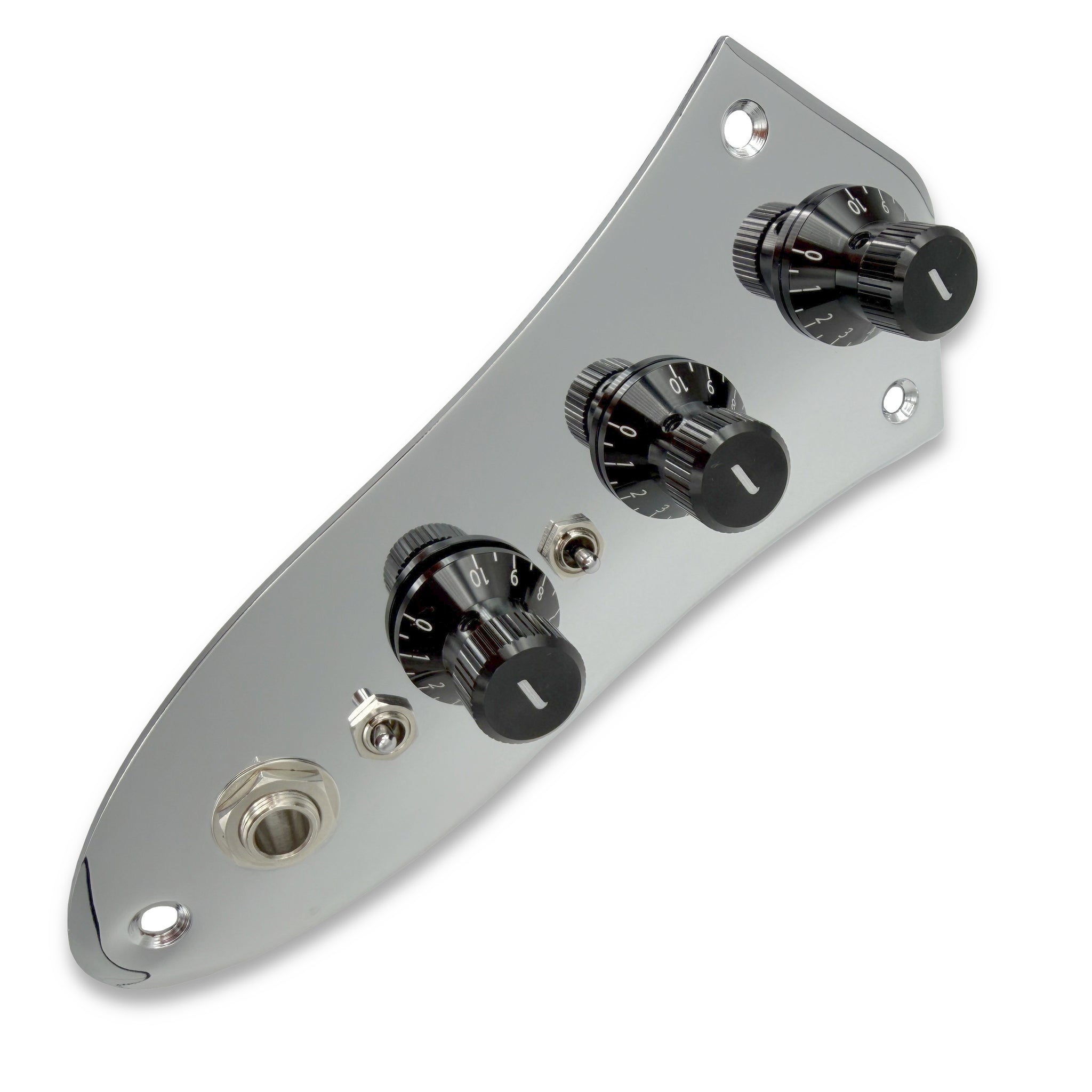

The NFP Jazzplate is just an easy way for Jazz bass players to have the NFP filter sound on their instruments. It is solderless and it should fit on most Jazz basses on the market without any adjustments to the control cavity.

The control plate has a standard (3 Knob & 1 Switch) configuration of Neck Vol and Bridge Vol that is always in-circuit (Volume-Blend configuration is also available). It has a Passive/Active switch and an NFP Filter potentiometer which acts as the only EQ control.

The NFP is a second-order Lowpass filter with a resonant peak on its cutoff point (4khz) and the potentiometer allows you to sweep from anywhere between 150hz and its cutoff point of 4khz. This gives it its characterisctic wah-wahish sound, especially when Boosting the cutoff point via the push-push potentiometer.

Available with Chrome Jazz Plate and Black Aluminum Knobs

CONFIGURATIONS

Volume - Volume - NFP Filter - Active/Passive Switch

Volume - Blend - NFP Filter - Active/Passive Switch

TECHNICAL

All Lusithand preamps are solderless.

Operation: 9V to 27V

Current Draw:+-2 mAh(at 9v)
