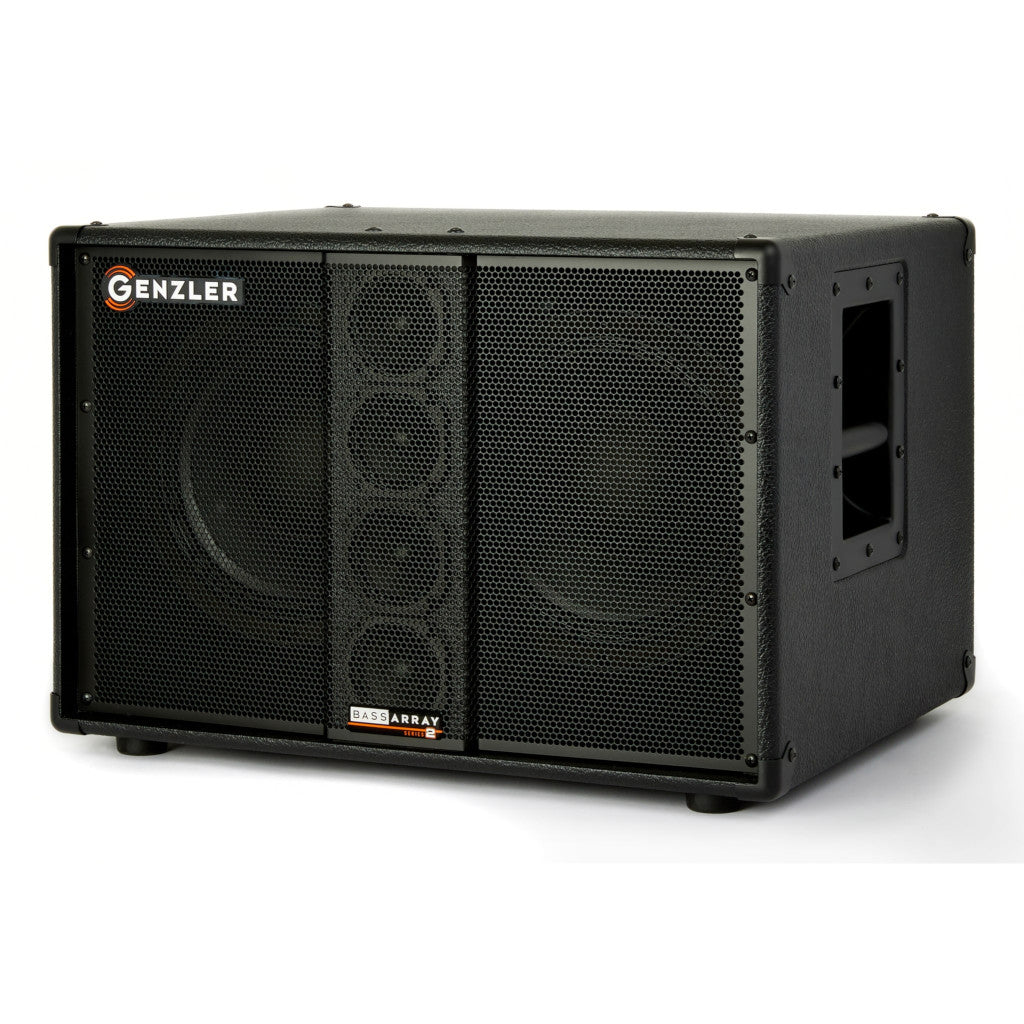

The new BA2-210-3STR (straight version) is identical to the original straight cabinet design, and now with all new Italian-designed premium Neodymium loudspeakers advances the Bass Array’s widely accepted unique approach to bass instrument loudspeaker reproduction. Overall tonal characteristics include defined, deep, broad lows, smooth mid-range character, seamlessly transitioning to extended top-end clarity.
Although the same size as many 2 x 10” and tweeter cabinets, this innovative design blends the punch and quickness of premium Neodymium dual 10” drivers, in a vented bass reflex enclosure, and the performance and pattern control of a 4 x 3” Neodymium paper cone driver line array element.
The placement of the line array in front of, and between the 10” woofers provides an extremely broad projection pattern, immediate quickness and articulation that is not possible with standard 2×10” designs. Also due to line array principles the all-important mid and high frequencies have a much wider horizontal dispersion with a more controlled vertical pattern. This offers the most even projection possible around the perimeter of the stage and audience.
This innovative design blends the benefits of a dual 10″ vented bass reflex design with the performance and pattern control of a 4 x 3” Neodymium driver line array element. The benefits of combining both design elements in an extremely compact cabinet are exponential for the player:
What this means in the context of performance is the most focused, defined, musically smooth and seamless response possible throughout the cabinet’s entire broad-range bandwidth.
This cabinet ship promptly and directly from Genzler.
Dimensions:
16″ [40.6cm] High
23″ [58.4cm] Wide
18″ [45.7cm] Deep
Weight: 34 Lbs. [15.4 kg]
Power Handling: 600 Watts
Frequency Response: 40-18K Hz
Sensitivity 1W/1M: 100 dB
Nominal Impedance: 8 ohm
Crossover Frequency: 800 Hz
Neodymium 10” Woofers w/4 x 3” Neodymium Line Array Drivers
Ported Cabinet Design
Cabinet Built w/Lite-ply & Baltic Birch Plywood

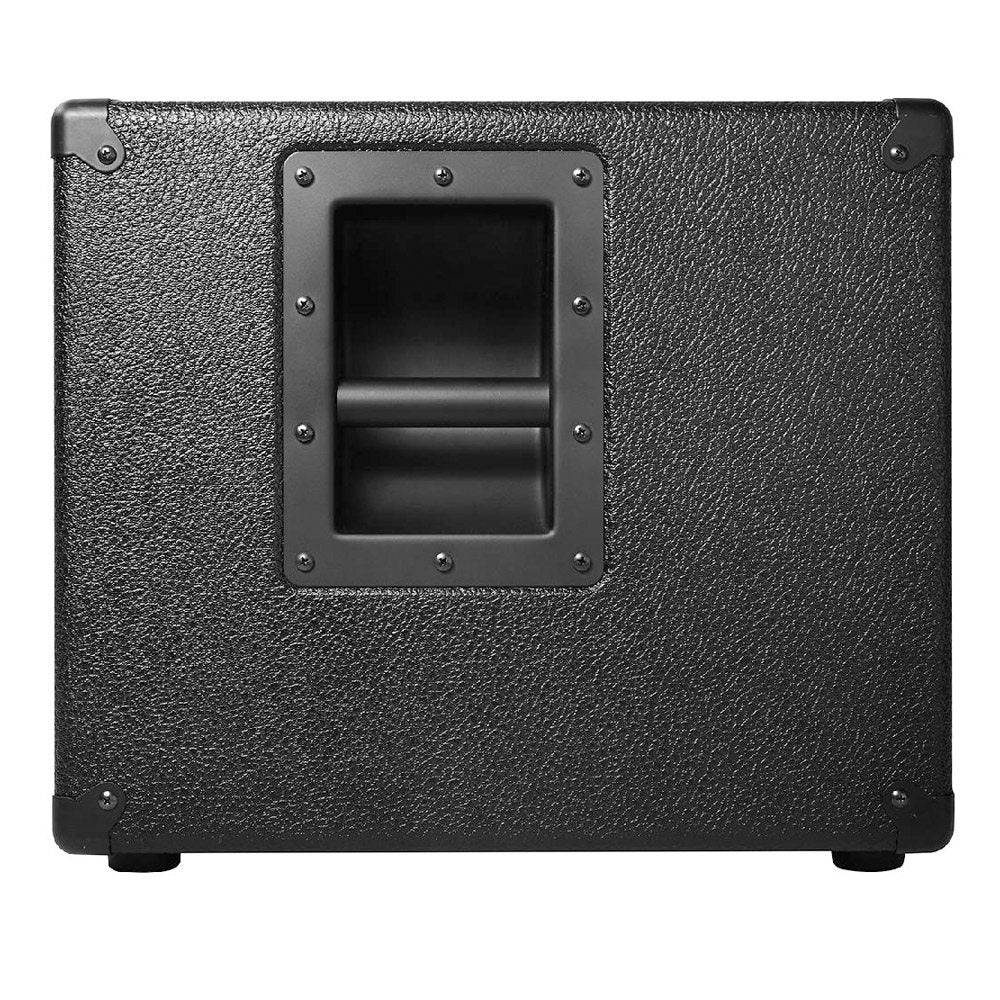

Side Mounted, Metal, Recessed Handles
Dual Speakon® and ¼” Input Jacks
Speaker Components:
Input Panel/Crossover Network:
Cabinet:
