Fat Bass Tone: Professional Series Instrument Cable


Your bass frequency requires a heavy-duty signal path. At Fat Bass Tone, we don't believe in "one size fits all." We’ve paired the legendary Mogami W2524 high-definition cable with industry-leading Neutrik connectors to give you a studio-grade connection that survives the rigors of the road.

The Fat Bass Tone Difference

  • Mogami W2524 Core: Engineered for low capacitance, our cables preserve the "snap" of your high-end and the massive fundamental of your low-B string.

  • Anti-Microphonic Shielding: We meticulously prep every cable by hand, stripping back the conductive carbon PVC layer to eliminate the "thumping" and crackling noise common in mass-produced leads.

  • Built to Last: Every cable is hand-soldered in-house and finished with heavy-duty strain relief.

Cable: Mogami W2524 Instrument Cable

  • Oxygen-Free Copper Core
  • Carbon-Impregnated PVC
  • Ultra-HD Spiral Shield
  • Conductive Polymer Sub-Shield
  • No Handling Noise

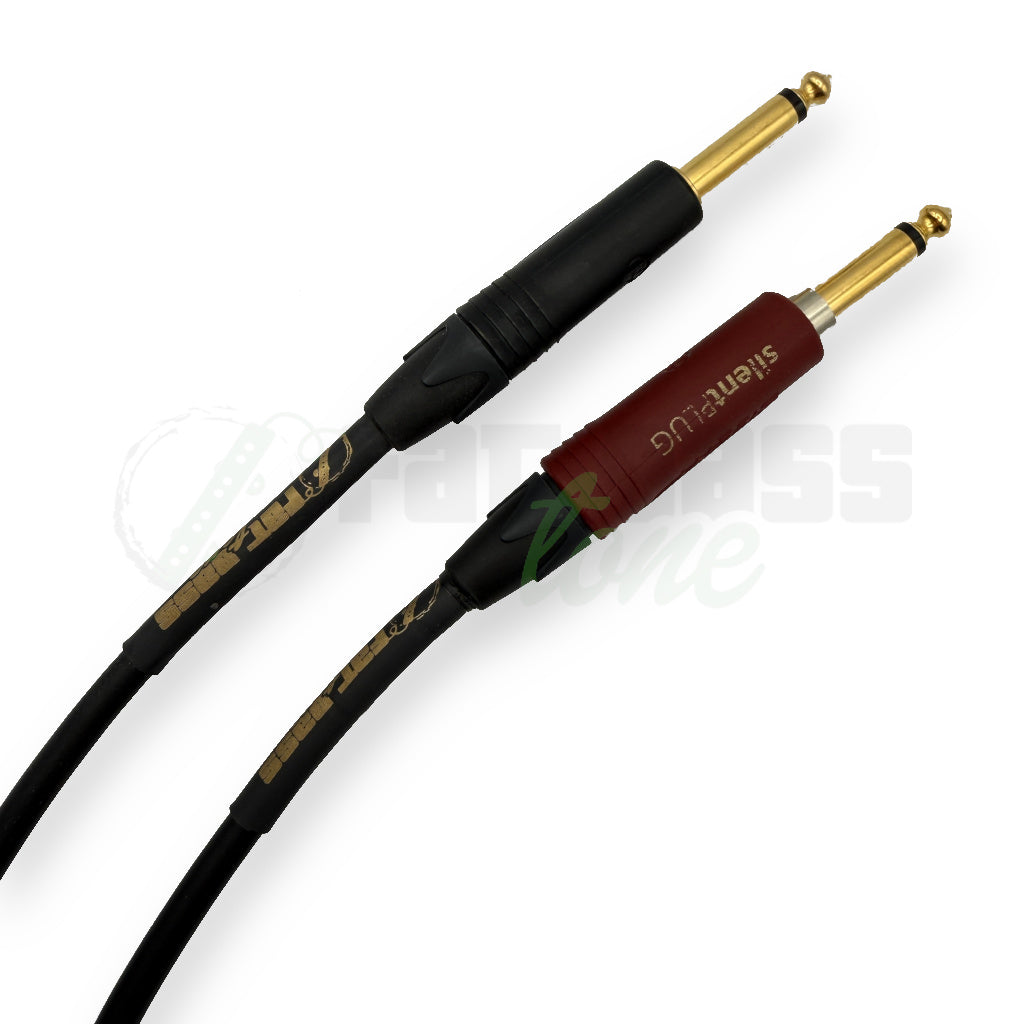

Silent Plug: Neutrik 1/4" TS Mono Silent Plug

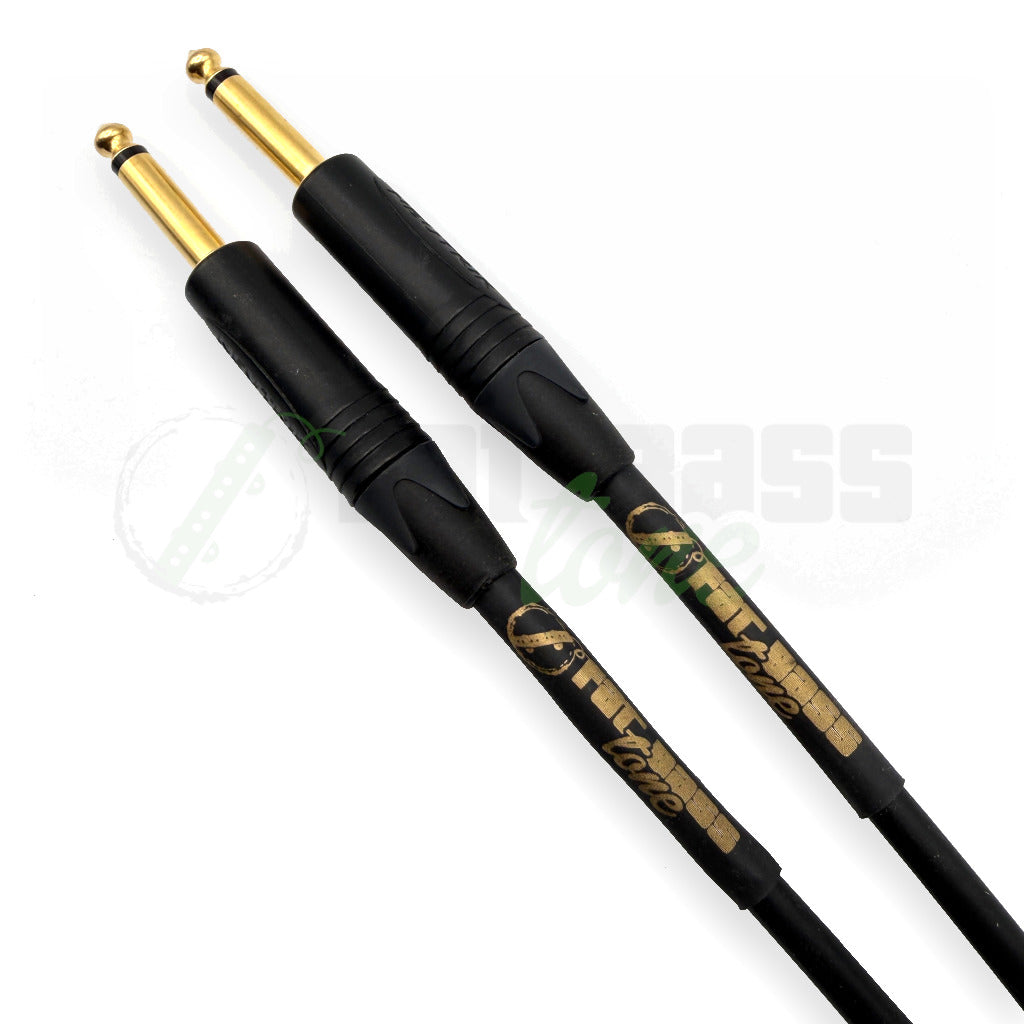

Standard Plug: Neutrik 1/4" TS Mono Plug

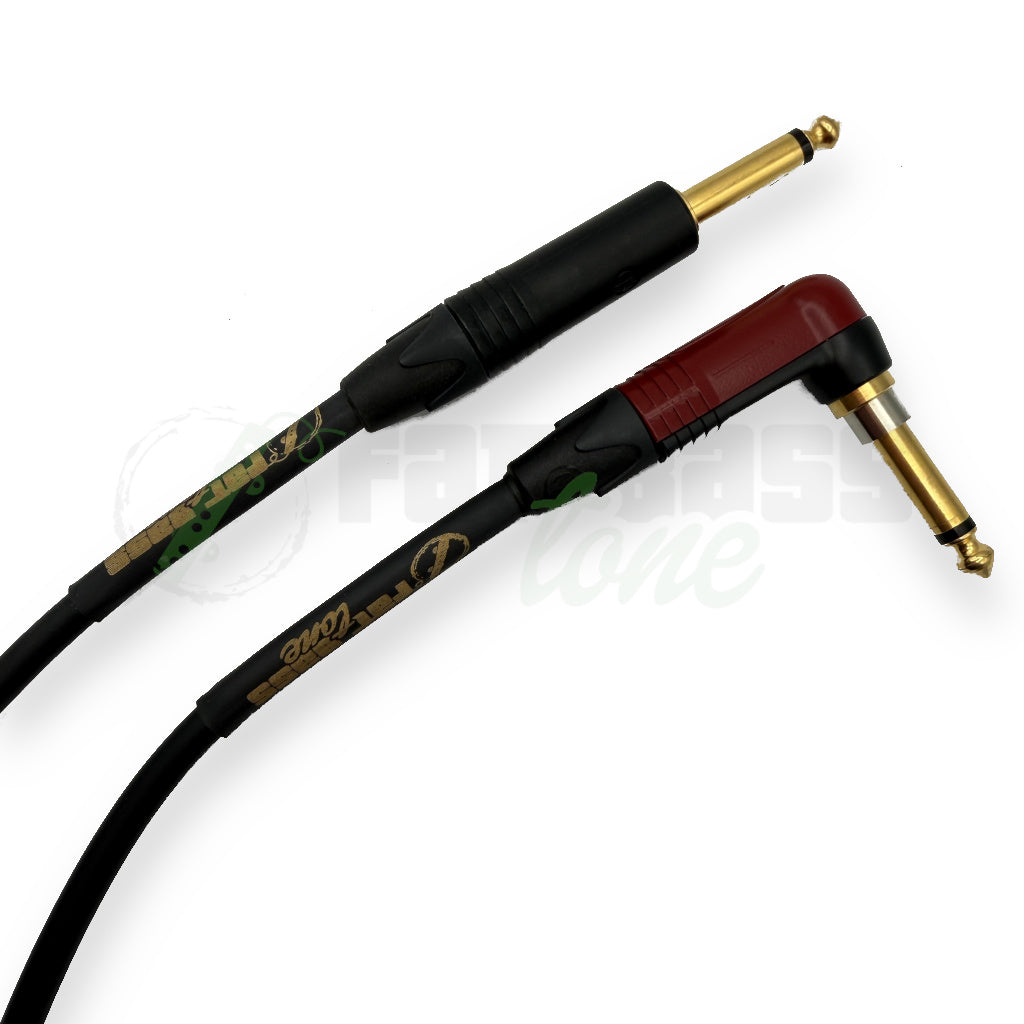

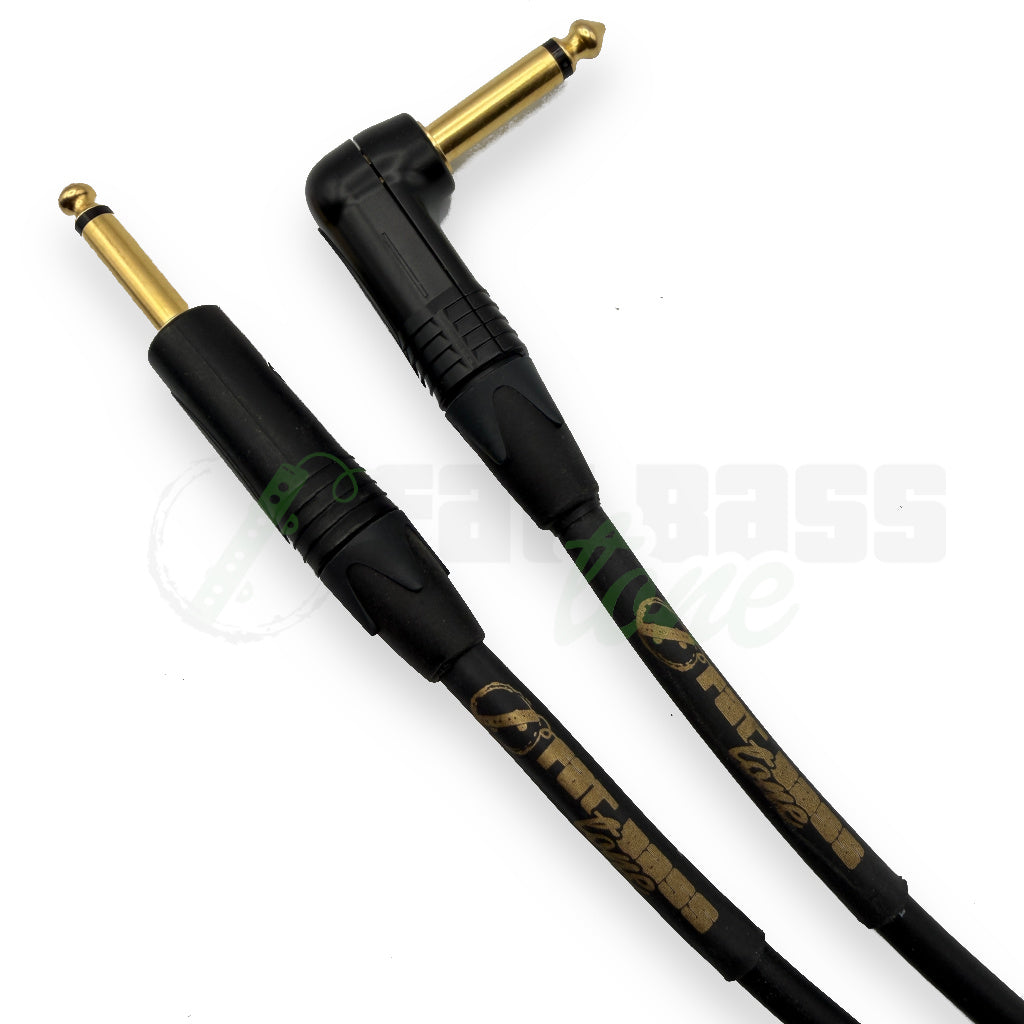

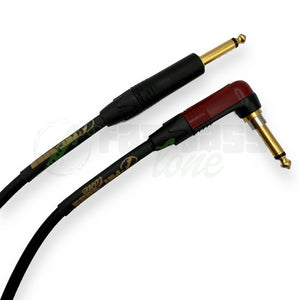

Available in Straight-to-Straight or Straight-to-Right-Angle configurations.



TECH & SPECS

  • Conductor:
    Details: 50/0.12A
    Size (mm²): 0.565mm² (#20AWG)
  • Insulation:
    Ov. Dia. (mm): 2.7 diameter (0.106")
    Material: PE
    Color: Clear
  • Sub-Shield:
    Ov. Dia. (mm): 3.3 diameter (0.130")
    Material: Conductive PVC (Carbon PVC)
  • Color: Black
  • Main-Shield: Served-Shield: Approx. 55/0.18A
  • Jacket:
    Ov. Dia. (mm): 6.0 diameter (0.236")
    Material: PVC
    Color: Black


  • DC Resistance at 20C:
    Inner Conductor: 0.033W/m (0.010W/Ft)Shield Conductor: 0.014W/m (0.0043W/Ft)
  • Capacitance at 1kHz, 20C: 130pF/m (39.7pF/Ft)
  • Inductance: 0.2H/m (0.061H/Ft)
  • Electrostatic Noize*: 0.15mV Max.
  • Electromagnetic Noise At 10kHz*: 0.07mV Max.
  • Microphonics*: 0.3mV Max
  • Insulation Resistance: 100000 MW m Min. at DC 500V , 20C
  • Flex Life: 15,000 cycles
  • Tensile Strength (26C, 65%RH): 578 N
  • Emigration: Non-emigrant to ABS resin
  • Applicable Temperature: -20C~ +60C (-4F~ +140F)
  • * Using standard testing methods of Mogami Wire & Cable Corp.
