Wire this preamp with one 9 volt battery and it will fit into just about any instrument. With +/-18dB of boost and cut at 40Hz and +/- 16dB of treble boost and cut at 6.5 kHz you have can emphasize just the right frequencies to make your bass sound great in any mix.
This kit includes:
This kit does NOT include:
Black round switches included with configurations requiring switches.
Harnesses are professionally wired in the Fat Bass Tone shop.
All of our pre-wired harnesses are now wired using solderless connectors. This means that you should be able to install the harness without any soldering. A mini flathead screwdriver is included to allow you to screw down the terminals on to the necessary wires.
Read more here.
(*If you are installing into a bass with a barrell jack, you may need to solder a couple connections)
Prewired OBP-2 Preamps are wired for 9V operation.
Learn more about our Pre-Wiring Service here
**Sorry international bassists, but US Dealers are not authorized to ship Aguilar OBP Custom Kits outside of the US. Please contact us if you are having trouble finding Aguilar products in your home country.

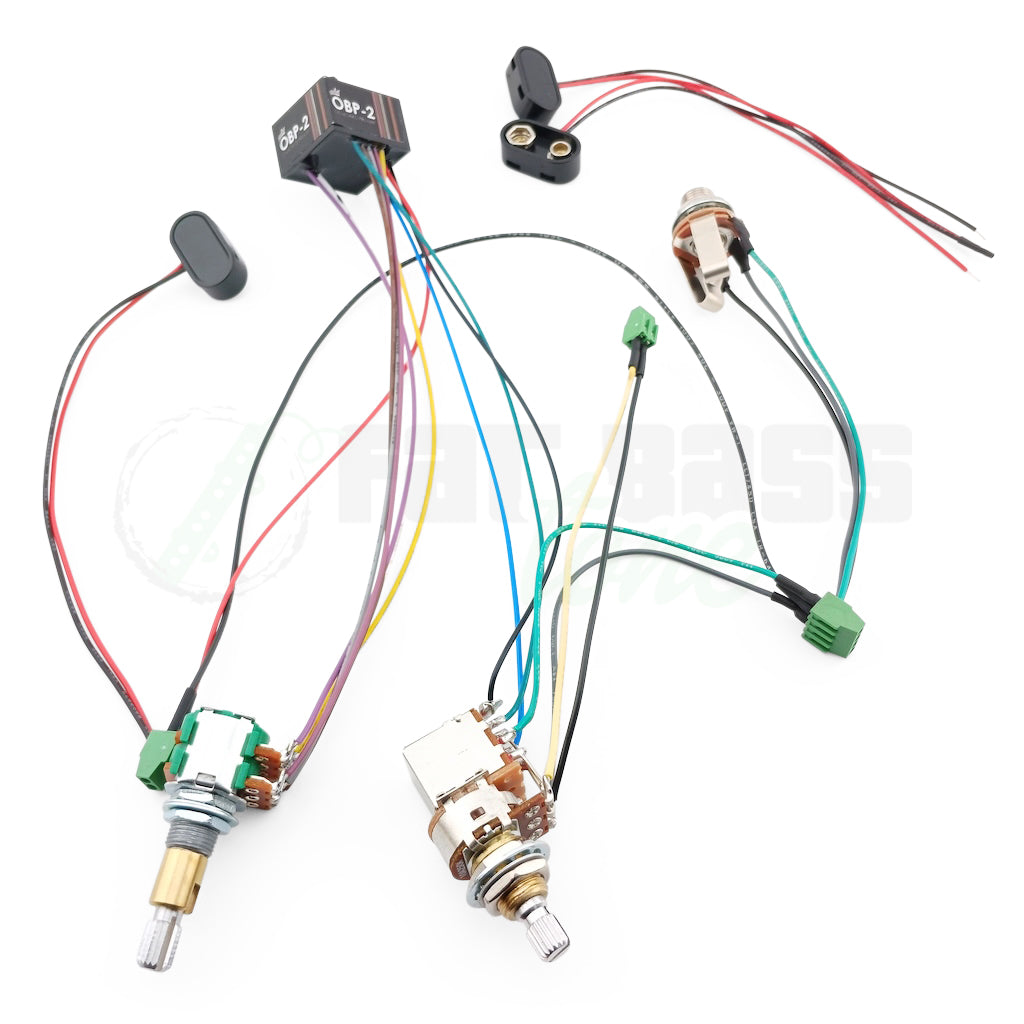

1 Pickup - 2 Knob (VPP-T/B)
Volume w/Active-Passive Push-Pull -- Treble/Bass Stack
1 Pickup - 2 Knob, 1 Switch (V-T/B-APSW)
Volume -- Treble/Bass Stack -- Active-Passive Switch

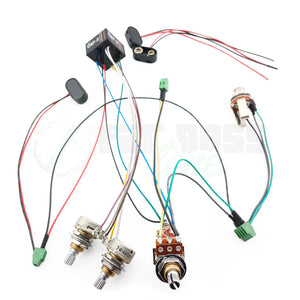

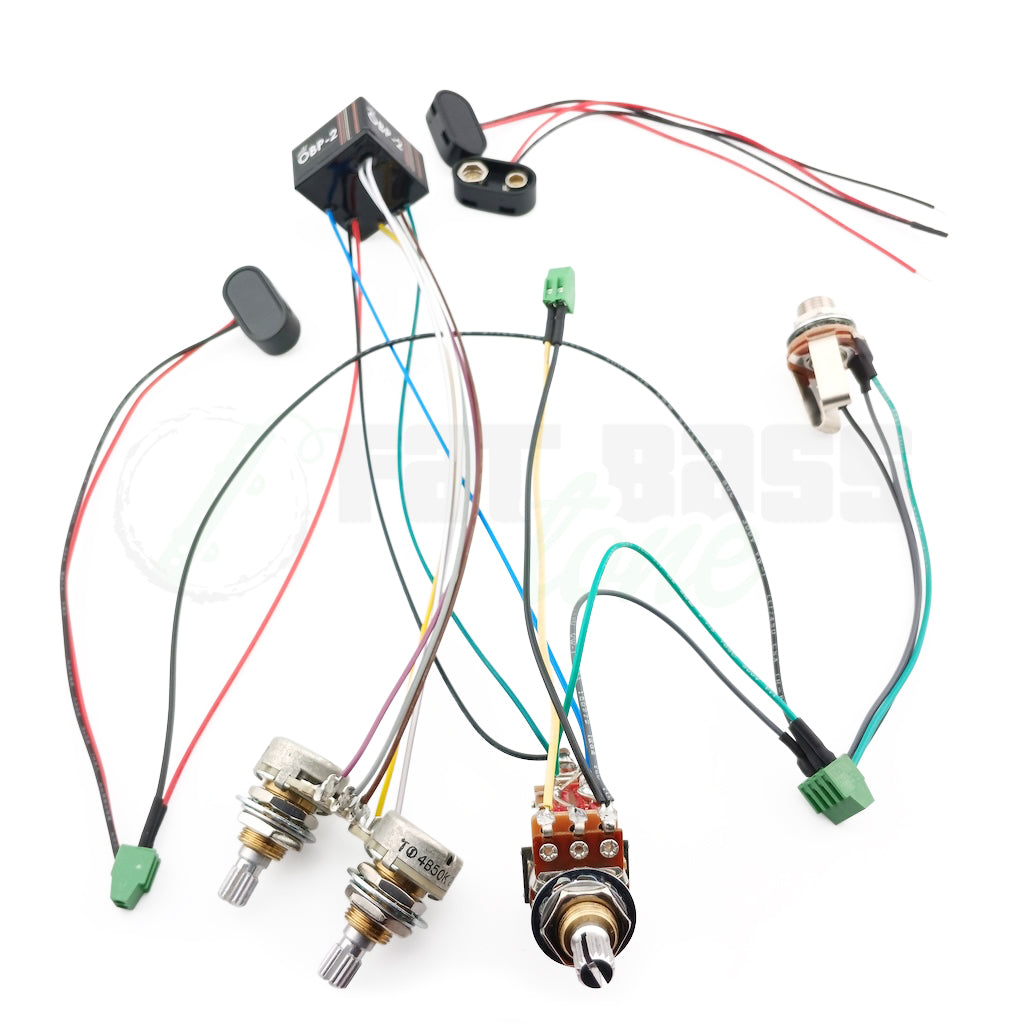

1 Pickup - 3 Knob (VPP-T-B)
Volume w/Active-Passive Push-Pull -- Treble -- Bass

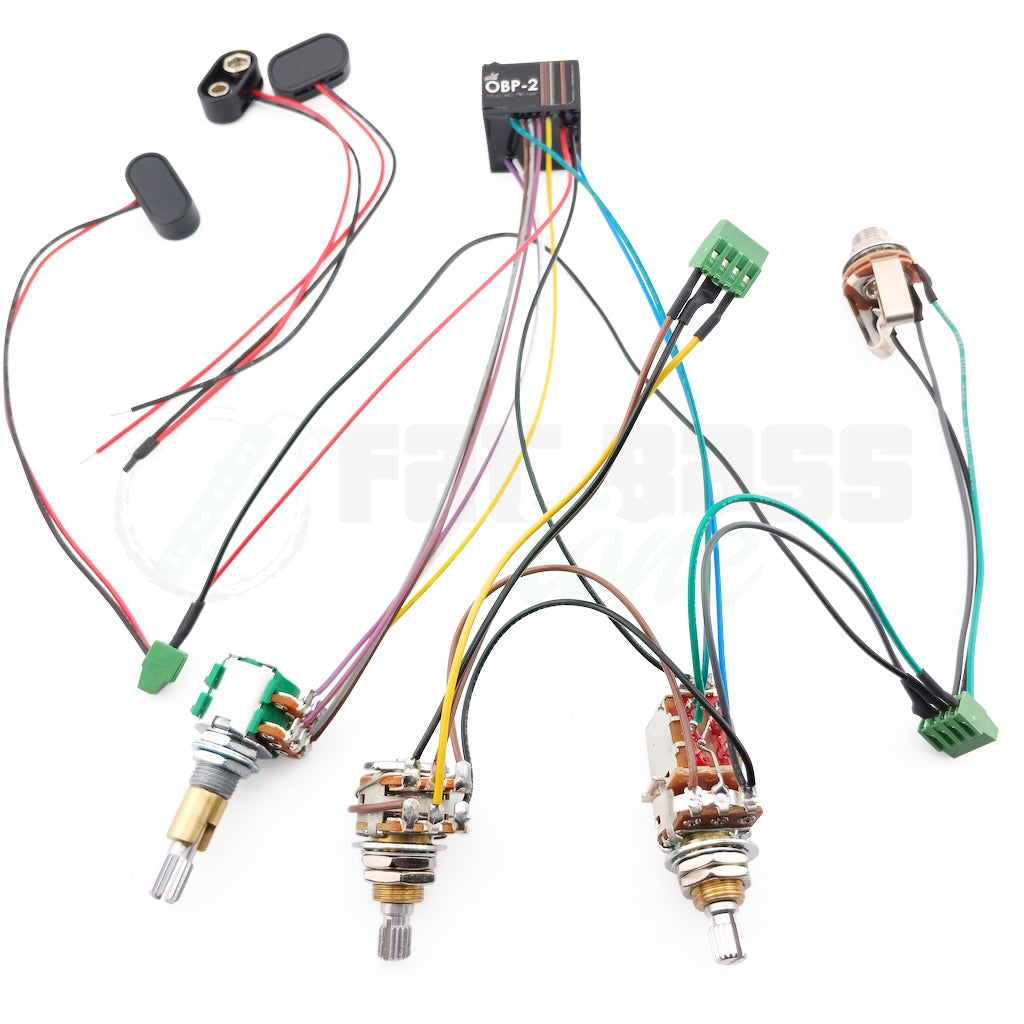

2 Pickup - 3 Knob (VPP-BL-T/B)
Volume w/Active-Passive Push-Pull -- Blend -- Treble/Bass Stack
3 Knob, 1 Switch (V-T-B-APSW)
Volume -- Treble -- Bass -- Active-Passive Switch

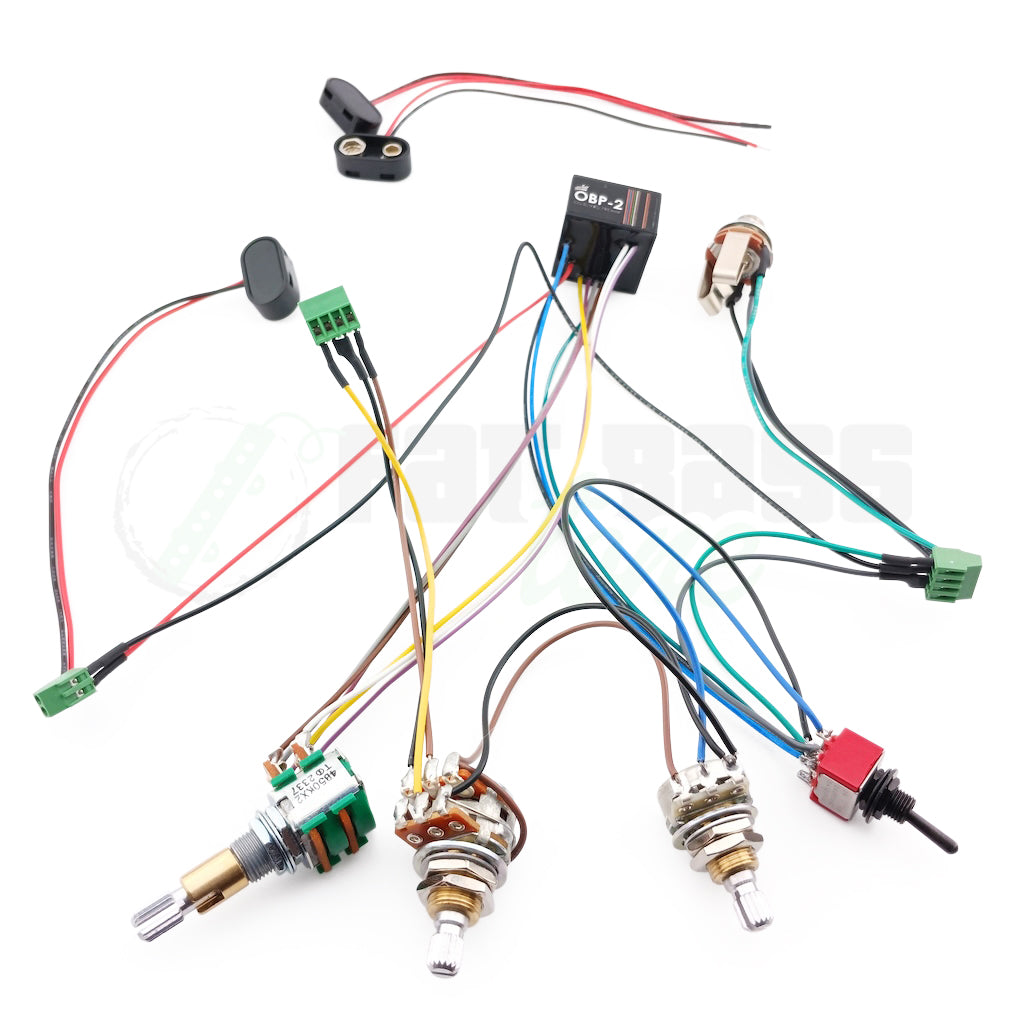

2 Pickup - 3 Knob, 1 Switch (V-BL-T/B-APSW)
Volume -- Blend -- Treble/Bass Stack -- Active-Passive Switch

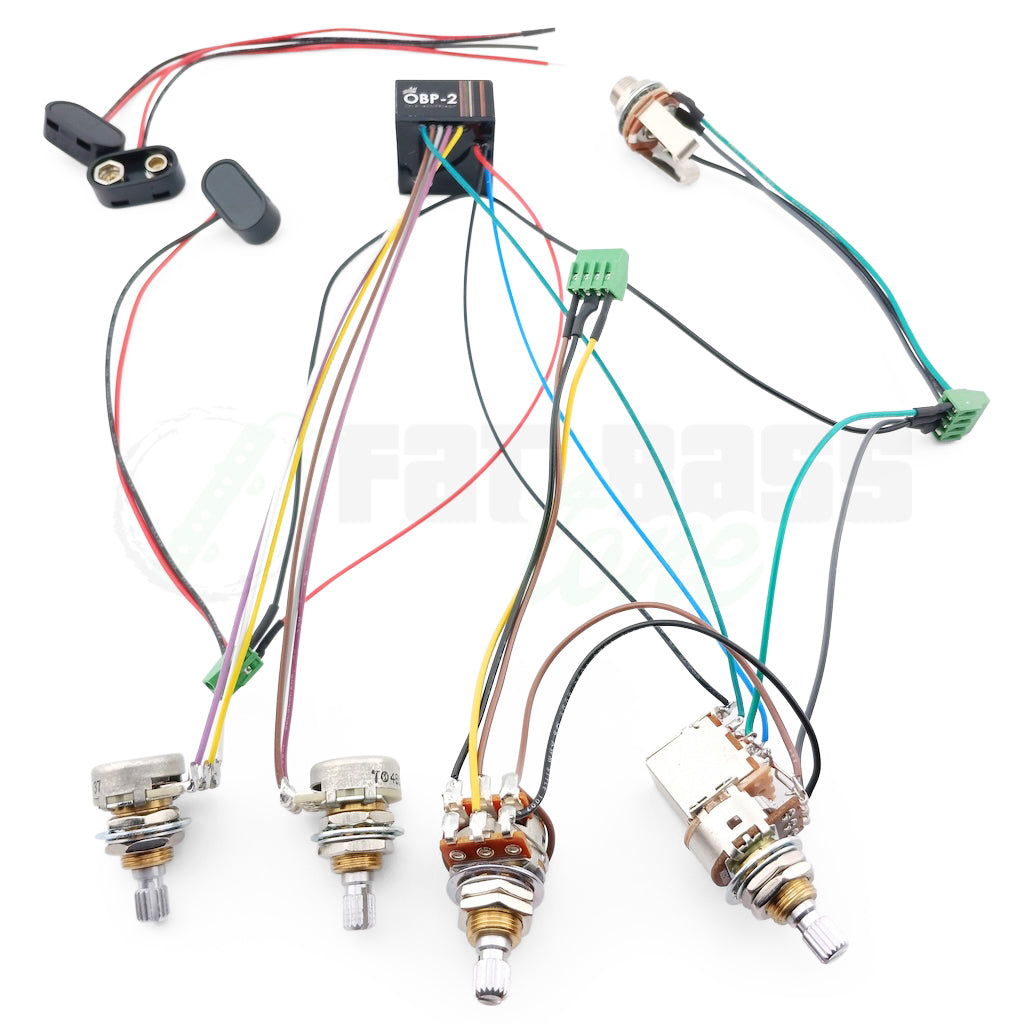

2 Pickup - 4 Knob (VPP-BL-T-B)
Volume w/Active-Passive Push-Pull -- Blend -- Treble -- Bass

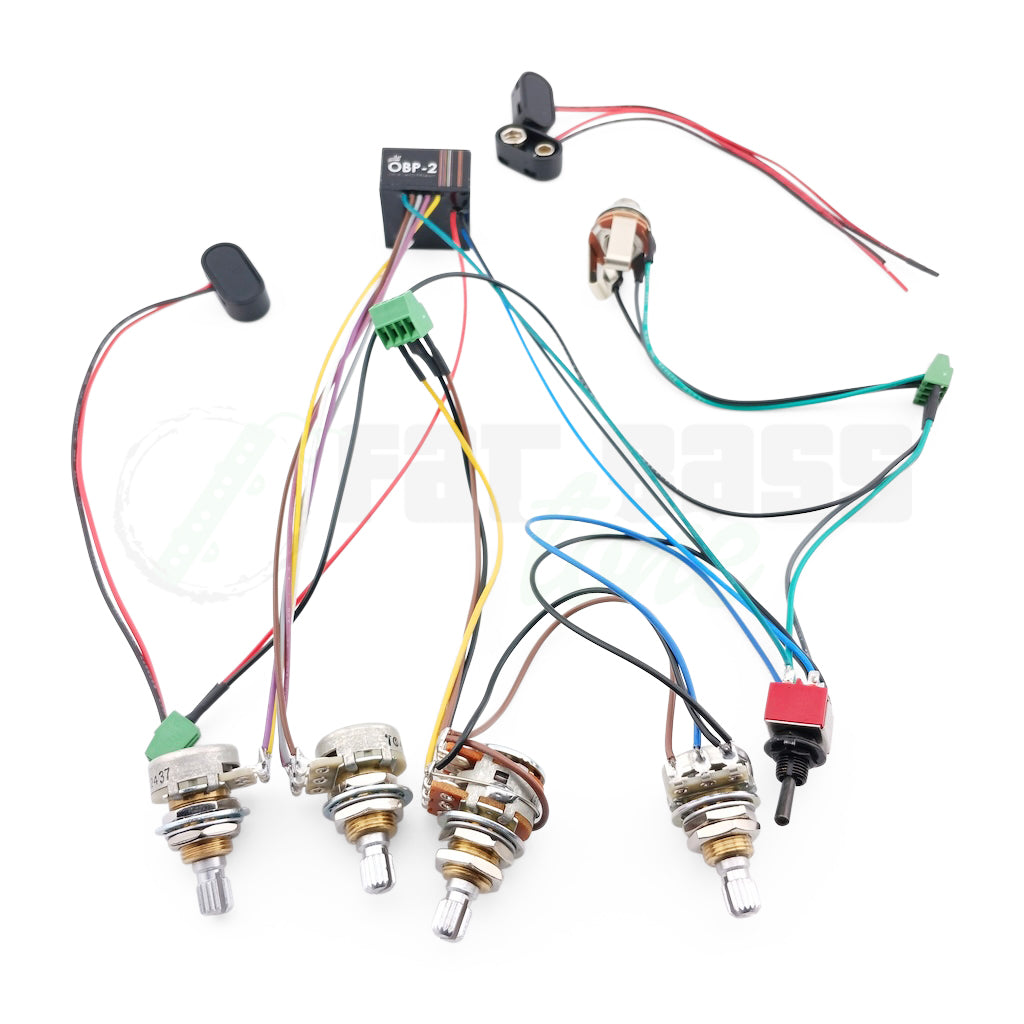

2 Pickup - 4 Knob, 1 Switch (V-BL-T-B-APSW)
Volume -- Blend -- Treble -- Bass -- Active-Passive Switch
Wiring Diagram for 2 Knob (VPP-T/B)
Wiring Diagram for 2 Knob, 1 Switch (V-T/B-APSW)
Wiring Diagram for 3 Knob (VPP-T-B)
Wiring Diagram for 3 Knob (VPP-BL-T/B)
Wiring Diagram for 3 Knob, 1 Switch (V-T-B-APSW)
Wiring Diagram for 3 Knob, 1 Switch (V-BL-T/B-APSW)
Wiring Diagram for 4 Knob (VPP-BL-T-B)
Wiring Diagram for 4 Knob, 1 Switch (V-BL-T-B-APSW)
Wiring Diagram for 2 Knob (VPP-T/B)
Wiring Diagram for 2 Knob, 1 Switch (V-T/B-APSW)
Wiring Diagram for 3 Knob (VPP-T-B)
Wiring Diagram for 3 Knob (VPP-BL-T/B)
Wiring Diagram for 3 Knob, 1 Switch (V-T-B-APSW)
Wiring Diagram for 3 Knob, 1 Switch (V-BL-T/B-APSW)
Wiring Diagram for 4 Knob (VPP-BL-T-B)
