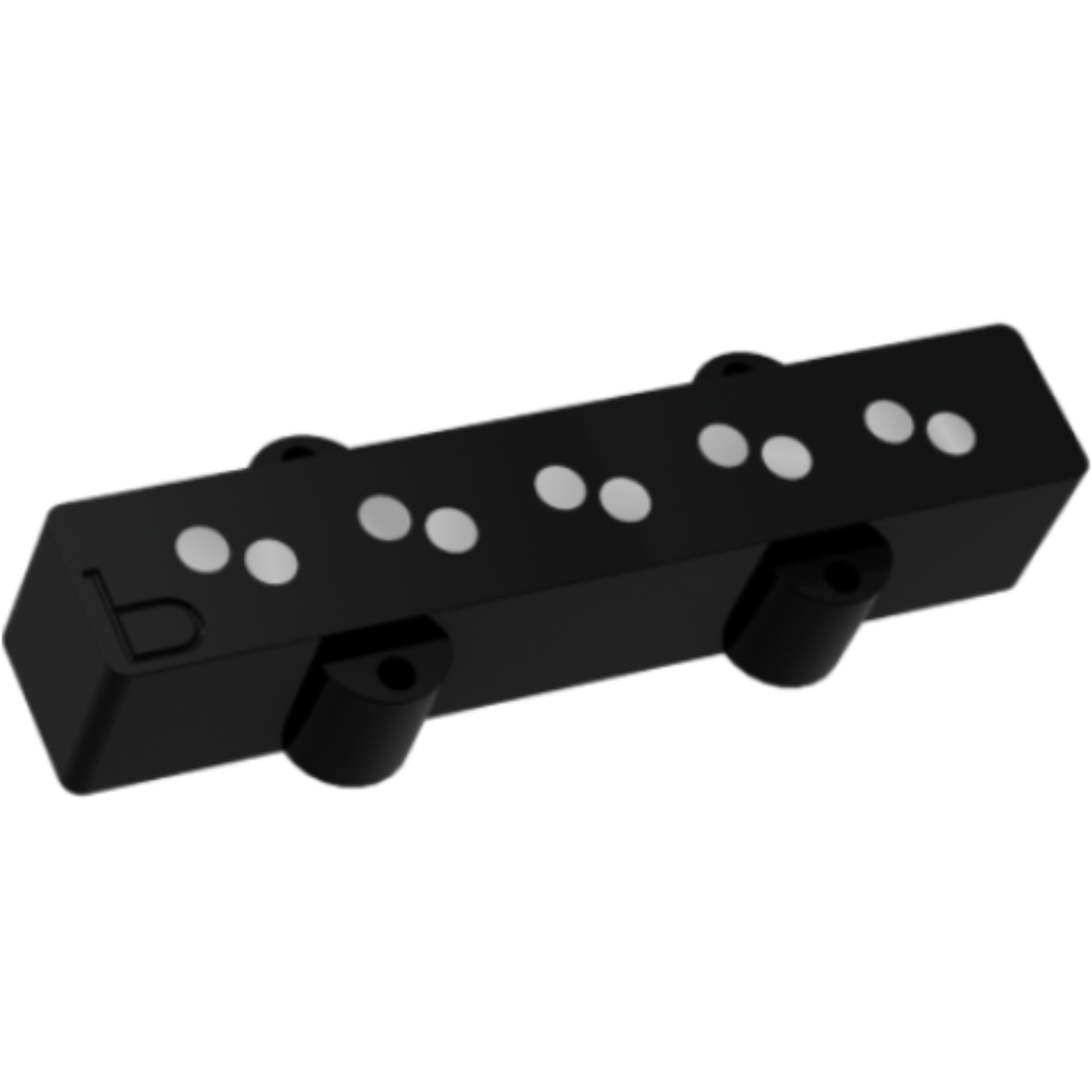

Punchy and defined voice with great articulation and harmonic content for your Fender® American Standard or Deluxe V J Bass®.

19mm and 18mm string spacing versions available.

Sold as a SET (Bridge & Neck pickups)

• INFO
• DIMENSIONS
• TECH
• MEDIA

• b-axis Jazz pickups series feature a new and unique fully encapsulated Alnico V exposed pole design, and yet they are still fully shielded like all our enclosed pickups. The cable is shielded as well. b-axis Jazz Bass® pickups are dual-inline hum-cancelling design for use in professional venues and studios. They are sweat-proof and won’t make nasty noises if you touch them.

  b-axis pickups are super punchy and bright, but also warm. They have outstanding articulation, attack, and harmonic response. Musicians who play jazz, rock, country, gospel, and hip-hop are already finding their voice in b-axis pickups.

  Available in balanced bridge and neck versions.

  Typically, Fender® American Standard or Deluxe V Jazz Bass® with a standard/original bridge will use the 19mm version.

  Fender® American Standard or Deluxe V Jazz Bass® with the upgraded/narrow bridge will use the 18mm version.

  **With the above being said, PLEASE BE SURE to measure the string spacing at the bridge to ensure you order the correct version for your bass.

  Artists: Amanda Rampe
• Size (Neck):
  4" [101.6mm] Long
  0.77" [19.6mm] Wide


  Size (Bridge):
  4.14" [105.2mm] Long
  0.77" [19.6mm] Wide


• Bartolini b-axis J55J wiring diagram


  Coil Structure:

  Dual Inline Hum-killing




  Cable Type:

  Shielded Coaxial Hot Core




  Magnetic Circuit:

  Offset Alnico V pole magnets with controlled charge and copper, and aluminum field shaping
  Neck bass coil North, Neck treble coil South, Bridge bass coil South, and Bridge treble coil North




  b-axis J55J-S-19 - Neck

  • DC Resistance: ~11.2KΩ
  • Resonant Frequency: ~4.9KHz
  • Sensing Width: 2.74" [69.7mm] B Center to G Center



  b-axis J55J-L-19 - Bridge

  • DC Resistance: ~12.4KΩ
  • Resonant Frequency: ~4.9KHz
  • Sensing Width: 2.92" [74.1mm] B Center to G Center



  b-axis J55J-S-18 - Neck

  • DC Resistance: ~11.1KΩ
  • Resonant Frequency: ~4.9KHz
  • Sensing Width: 2.63" [66.7mm] B Center to G Center



  b-axis J55J-L-18 - Bridge

  • DC Resistance: ~12.1KΩ
  • Resonant Frequency: ~4.9KHz
  • Sensing Width: 2.77" [70.4mm] B Center to G Center
