BC5CBC-T

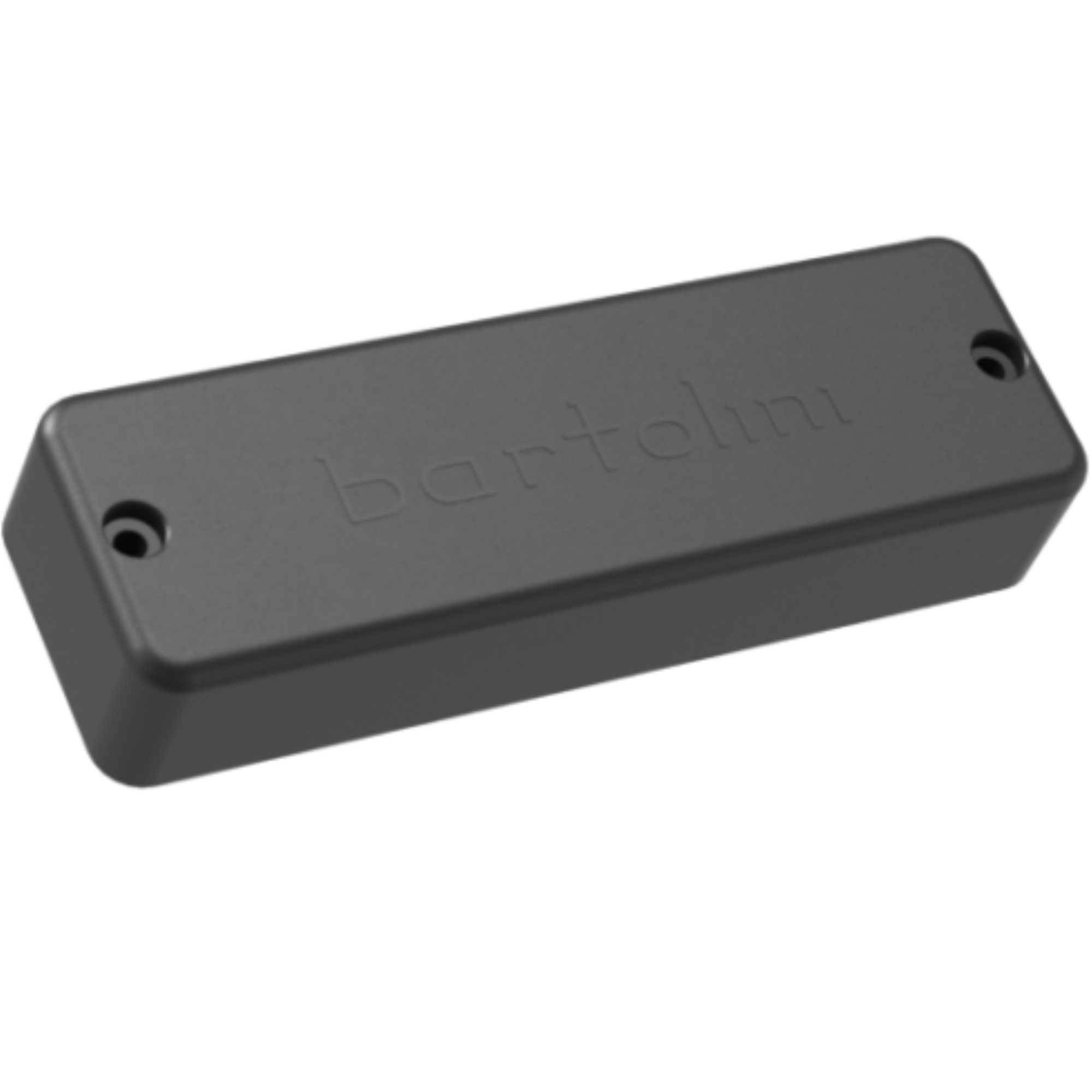

Bartolini BC5CBC 5-String Classic Bass BC Soapbar Pickup

Configuration Bullet IconAVAILABLE IN NECK AND BRIDGE VERSIONS

Puzzle Bullet Icon5-STRING BC SOAPBAR SHAPE

Waveform Bullet IconRICH, DEEP TONE WITH HIGH-END CLARITY

Popular Bullet IconPASSIVE DUAL-COIL HUMBUCKING DESIGN

Wiring Bullet Icon4-CONDUCTOR CABLE FOR FLEXIBLE WIRING

empty box iconFREE SHIPPING IN THE USA
configuration iconEXPERT TECHNICAL SUPPORT
checklist iconIN STOCK MEANS IN STOCK

DESCRIPTION

The Bartolini BC5CBC Classic Bass soapbar combines Bartolini's rich, deep low-end character with strong high-end clarity and warmth. When you dig in, it responds with a growly, articulate voice; when you pull back, it stays clear and sweet. The Classic Bass series also handles slap and pop playing well, making it a versatile option for players who need both warmth and definition.

The BC5CBC is a passive 5-string BC-shape soapbar with a dual parallel humbucking design. Bartolini's focused magnetic aperture and ceramic-powered magnetic circuit help deliver strong articulation without sacrificing low-end response.

Choose the BC5CBC-B for the neck position or the BC5CBC-T for the bridge position. Bartolini offers separate neck and bridge versions so they balance well together in your bass.

DIMENSIONS & TECH

Size (Neck & Bridge):
3.95" [100.3mm] Long
1.26" [32mm] Wide
0.68-0.78" [17.3-19.8mm] Thick
+ 0.15" [3.8mm] Cable Clearance

Bartolini BC5CBC 5-String BC Soapbar Pickup Dimensions

Mounting:

1 hole on the bass end and 1 hole on the treble end for #4 pan head screws.

Coil Structure:

Dual Parallel Humbucking

Cable Type:

4-Conductor Cable with shield and bare drain

Magnetic Circuit:

2 types of precision CNC milled carbon steel, brass, and copper powered by ceramic (ferrite) magnets projected for focused aperture.
Neck coil South and Bridge coil North for both positions.



BC5CBC-B - Neck

  • DC Resistance: ~3.7KΩ each coil
  • Resonant Frequency: ~4.9KHz
  • Sensing Width: 2.8" [71mm] Max

BC5CBC-T - Bridge

  • DC Resistance: ~5.2KΩ each coil
  • Resonant Frequency: ~4.5KHz
  • Sensing Width: 2.8" [71mm] Max

Bartolini BC5CBC Classic Bass Pickup Sensing Pattern

Bartolini BC5CBC Wiring Diagram

WHAT IS THE TONE OF THE BARTOLINI CLASSIC BASS SOAPBAR PICKUPS?

Bartolini Classic Bass soapbars have a rich, deep voice with plenty of high-end clarity and warmth. When you dig in, they are responsive and growly. When you pull back, they become clear and sweet. They also retain the articulation needed for slap and pop playing.

The Classic Bass series is especially popular with progressive, jazz, gospel, and metal players where articulation is critical. The strong high-end definition does not come at the expense of the low end, so the pickup retains the depth and warmth associated with Bartolini.

Classic Bass pickups are also sweat-proof and designed to avoid the crackle and thud that can occur when pickups are touched or struck by the strings.

As always, keep in mind that these are generalizations. Your experience can vary depending on your bass, strings, electronics, amplification, setup, and playing style.
