PV5S

Bartolini PV5S 5 String Original Series Precision BassÂź Pickups for FenderÂź American StandardÂź

Checklist Bullet IconFITS AMERICAN STANDARD SIZING - SEE DIMENSIONS BELOW

Waveform Bullet IconORIGINAL DEEP TONE SERIES

Data Science Bullet IconSTRONG LOW & LOW MIDS

Original Bullet IconMADE IN THE US

empty box iconFREE SHIPPING IN THE USA
configuration iconEXPERT TECHNICAL SUPPORT
checklist iconIN STOCK MEANS IN STOCK

DESCRIPTION

Big, deep vintage P-Bass tone for your Fender Style 5-String P-bass V.

The original Bartolini design gives you the timeless tone that started it all – full and warm for that vintage voice you’ve been craving, enhancing the natural voice of your bass. These split coil pickups are hum-cancelling, so they are well suited for studio or stage. They have a blade core design, so you don’t have to worry about string alignment. Original Barts bring out your voice, low and clear.

In the early ‘70s, Bill Bartolini leveraged his deep knowledge of acoustics to create pickups that produce the most natural, musical voice from the instrument. He added shielding to block radio signals and noise. He developed a method of sealing, isolating, and stabilizing the coils so they could be encapsulated in epoxy to eliminate “microphonics” – the nasty noise you get when you touch typical pickups.

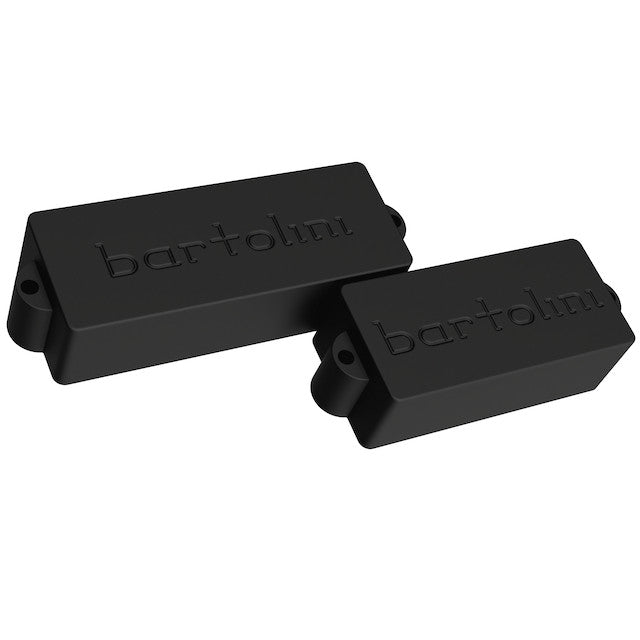

DIMENSIONS

Size (Short Shell):
2.28" [58mm] Long
1.07" [27mm] Wide

Size (Long Shell):
2.8" [71mm] Long
1.07" [27mm] Wide



TECH & SPECS

Coil Structure:
Split P Hum-killing

Cable Type:
Shielded Coaxial Hot Core

Magnetic Circuit:
2 types of carbon steel powered by ceramic (ferrite) magnets projected shallow for wide aperture
Bass coil North and treble coil South

Coil Specs

  • DC Resistance: ~10.5KΩ
  • Resonant Frequency: ~4.6KHz
  • Sensing Width: 3.15" [80mm] Max
