Fat Bass Tone

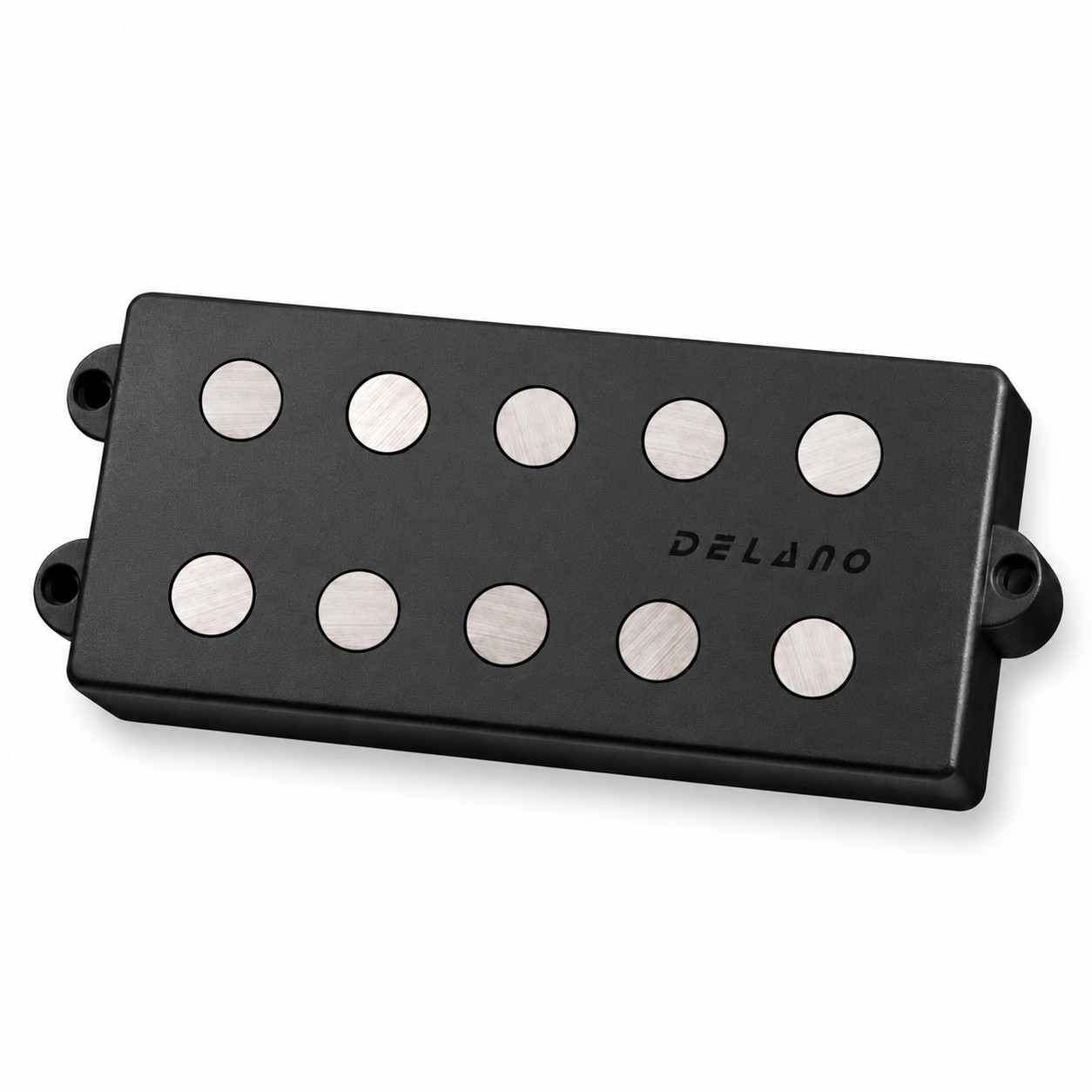

MC5 AL-Black
5 STRING DUAL COIL HUMBUCKER
TIGHT BASS + WARM LOW MIDS
10 INDIVIDUAL ALNICO V POLE PIECES
4-CONDUCTOR WIRING FOR SWITCHING OPTIONS
FREE SHIPPING IN THE USA
EXPERT TECHNICAL SUPPORT
IN STOCK MEANS IN STOCK
The Delano MC 5 AL is a 5-string dual-coil humbucker built around two XL-size coils and ten individual AlNiCo V pole pieces. Its broad sensing field delivers a big, solid five-string sound while keeping the low end tight and complex playing clearly defined.
Warm, full low mids give the pickup plenty of body, while strong transients preserve attack and definition. Its rawer upper-frequency character adds useful grind and cut, making it a great choice when you want a substantial bass sound that can still find its place in a mix.
The shielded 4-conductor cable gives you useful switching flexibility beyond the full humbucking voice. Wire the coils in parallel and the MC 5 AL shifts toward a brighter, cleaner high-end response that works especially well for clean funk, chords and tapping.
Model: MC 5 AL
Instrument: 5 String Bass
Pickup Type: Dual Coil Humbucker
Coils: Two XL-Size Coils
Magnets / Pole Pieces: 10 Individual AlNiCo V Pole Pieces
Wiring: Shielded 4-Conductor Cable
Country of Manufacture: Germany

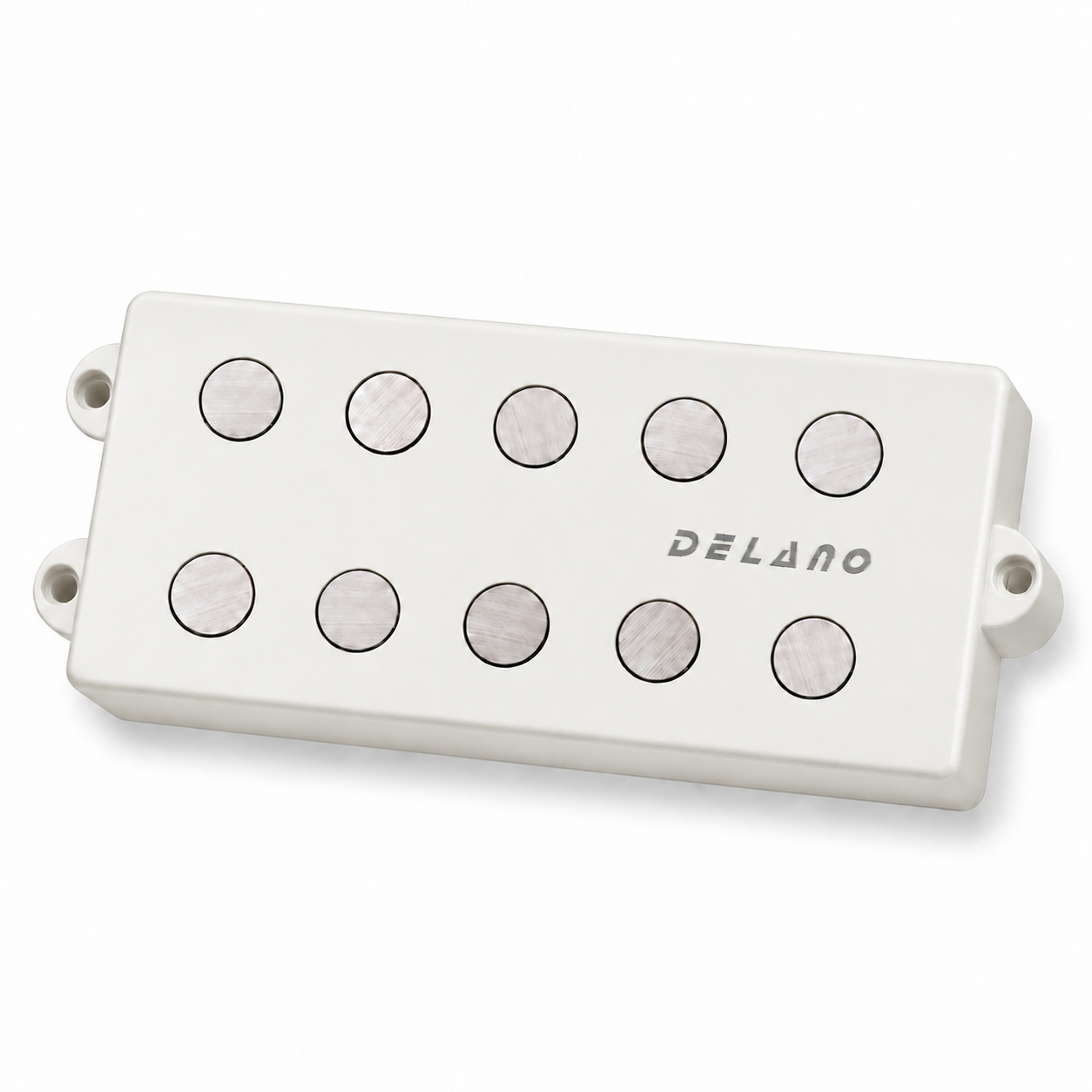

Colors: Black or White
Included: Pickup Screw Tubing and Black Screws
Switching: The 4-conductor cable provides access to the individual coils for alternate wiring configurations.
Series: Full dual-coil humbucking response.
Parallel: Brighter, cleaner response suited to clean funk, chords and tapping.
Housing Length: 105 mm / 4.13"
Overall Length Including Mounting Tabs: 117.5 mm / 4.63"
Width: 48.5 mm / 1.91"
Housing Depth: 16.2 mm / 0.64"
Overall Depth: 18.5 mm / 0.73"
Corner Radius: 3.2 mm / 0.13"
The MC 5 AL uses Delano's longer MC 5-string housing. Compare the housing size, mounting-tab spacing and depth with your existing pickup and routing before ordering, particularly when replacing a pickup from another manufacturer.
Put on a good set of headphones and check out the demo below to hear the character of Delano's MC AL pickup for yourself.
Note: This demo features the 4-string MC4 AL version; the pickup offered on this page is the 5-string MC5 AL.
