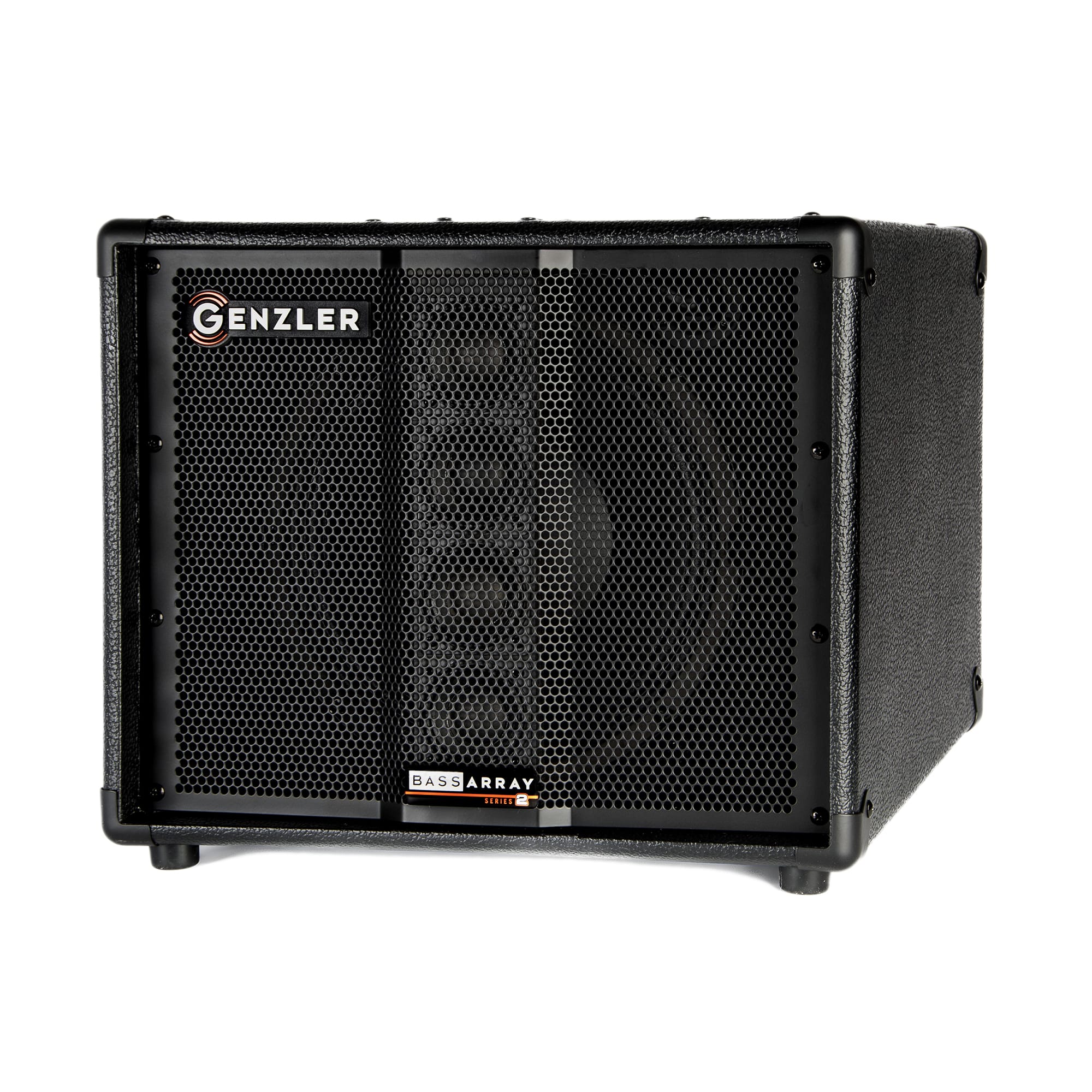

The BA10-2-S2 blends the punch and quickness of a premium Neodymium 10” woofer in a compact, vented bass reflex enclosure, along with the performance and pattern control of a proprietary line array element, utilizing 4 x 2″ neodymium full-range drivers. With the Bass Array™ design, the placement of the line array mounted in front of the 10” woofer provides extremely broad projection, quickness, and articulation. As well, the all-important mid and high frequencies have a much wider horizontal dispersion with a more controlled vertical pattern.

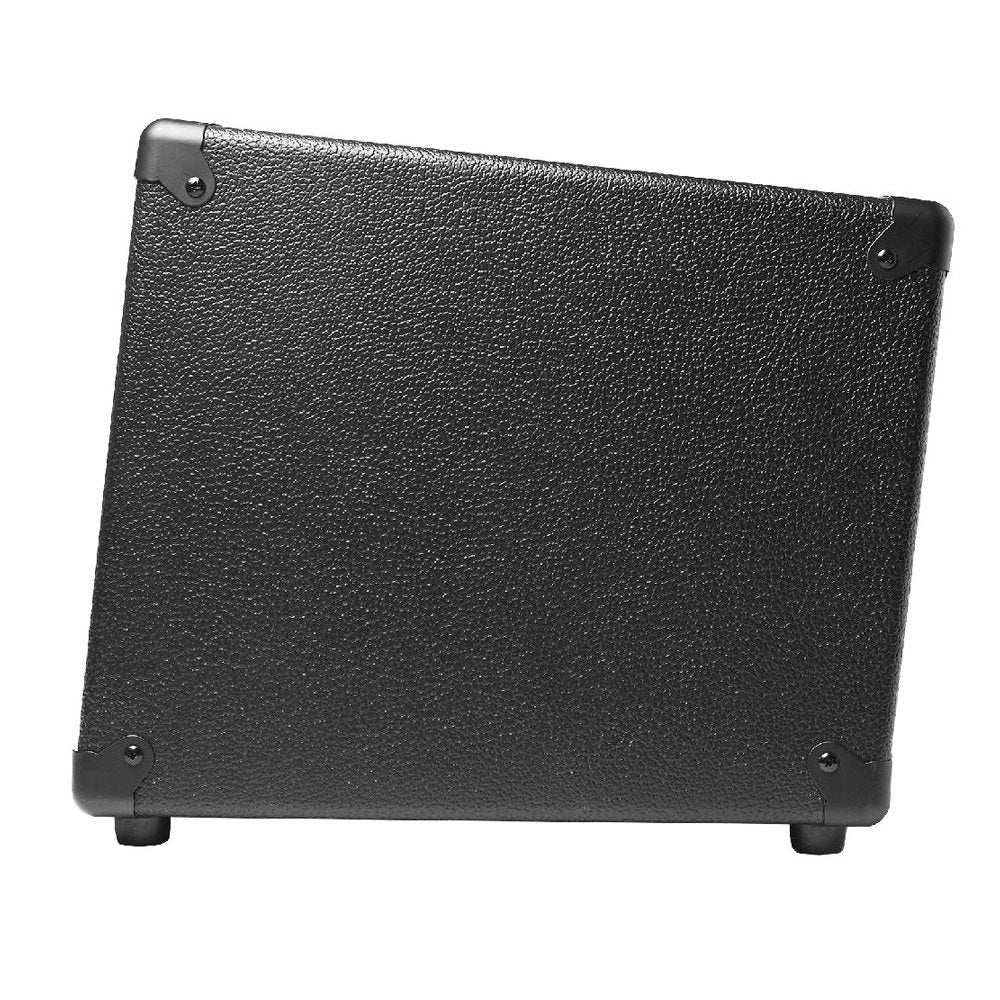

The benefits of combining both design elements in an extremely compact cabinet are exponential for the player requiring a small, yet powerful enclosure. The BA10-2-S2 still offers the same unique cabinet shape with an angled baffle — tilting up towards the player — and a single top/rear mounted, edge-lift handle for an easy grab and go solution. When stacking 2 cabinets they form a unique “arc” for increased dispersion.
This model “way out-performs” it’s very compact size and is ideal for electric or upright bass requirements.
This cabinet ship promptly and directly from Genzler.
Dimensions:
15.5” [39.8cm] Wide
13” [33.0cm] High
15” [38.1cm] Deep
Weight: 19 Lbs. [8.6kg]
Power Rating: 300W / 8 Ohms
Neodymium 10” Woofer w/ 4 x 2” Neodymium Line Array Drivers
Unique Angled Baffle Cabinet Design
Top/Rear Mounted Edge-lift Handle

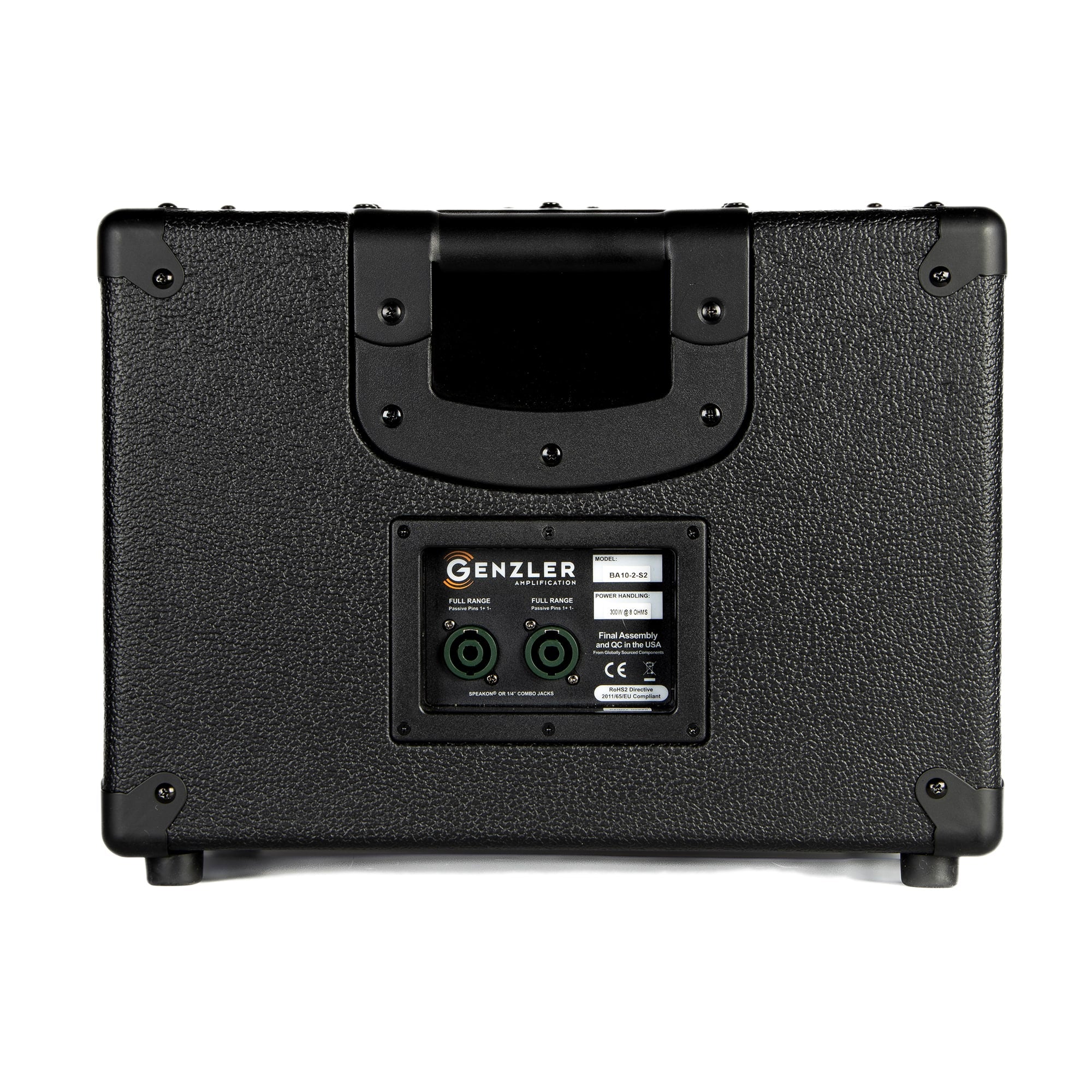

Dual Speakon® and ¼” Combination Input Jacks
Power Handling: 300 Watts
Frequency Response: 48-20 KHz
Sensitivity 1W/1M: 97 dB
Nominal Impedance: 8 ohm
Crossover Frequency: 1.6 KHz
Speaker Components:
Input Panel/Crossover Network:
Cabinet Finish:
