DESCRIPTION

Lusithand Filter preamps, unlike common EQ/Preamps, allow you to completely change the character sound of your pickups by shifting its signature resonant peak. This, plus the ability to actively mix them, gives you a full new level of exciting tones not available on regular EQ preamps.

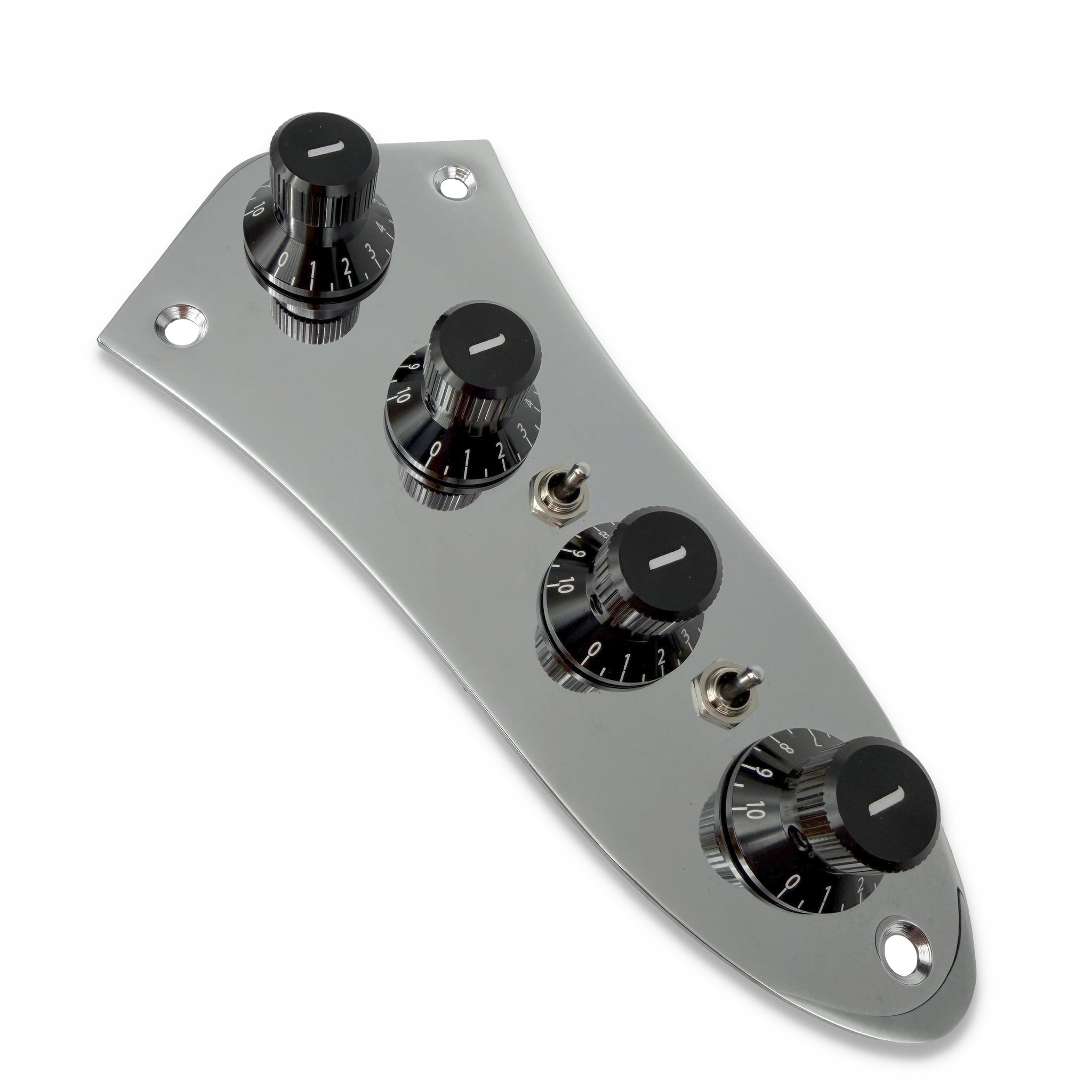

The Double NFP Jazzplate is just an easy way for Jazz bass players to have the Double NFP filter sound on their instruments in an easy and quick way to install.

This is a direct replacement plate that will fit most Jazz basses. It’s solderless and very easy to install, no need for opening holes for batteries as a single 9v sits perfectly inside the cavity. The instruments need to have the output Jack mounted directly on the body.

The control plate keeps its traditional configuration of Neck Vol and Bridge Vol that is always in the circuit. It has a Passive/Active switch and 2x Filters, one per pickup. Each Filter acts as a second-order Lowpass filter with a resonant peak on its cutoff point (4khz) and the potentiometers allow you to sweep from 130hz and 4Khz on the Neck and 150Hz and 4Khz on the Bridge. The Filters are push-pull to activate a boost on the resonant peak of each preamp.

Lusithand also added the same 3-way passive Tone Switch, used on the 800TS preamp, that can be used on Passive mode.

This is a great new way for you to get experimental with your instrument and stand out from the crowd and make your Tone, Your Tone.

TECHNICAL

All Lusithand preamps are solderless.

Operation: 9v to 27v

Current Draw: +- 4.5 mAh (at 9 Volts)

CONFIGURATION

2 Pickup, 4 Knob & 2 Switch: Volume Neck - Volume Bridge - NFP Filter Neck - NFP Filter Bridge - Passive 3 Way Tone Switch - Active/Passive Switch
