Fat Bass Tone
SAC PU MM5 B
5-STRING M-STYLE BRIDGE PICKUP
QUAD-COIL HUMBUCKER DESIGN
ALNICO V MAGNETS
SHIELDED 4-CONDUCTOR WIRING
FREE SHIPPING IN THE USA
EXPERT TECHNICAL SUPPORT
IN STOCK MEANS IN STOCK

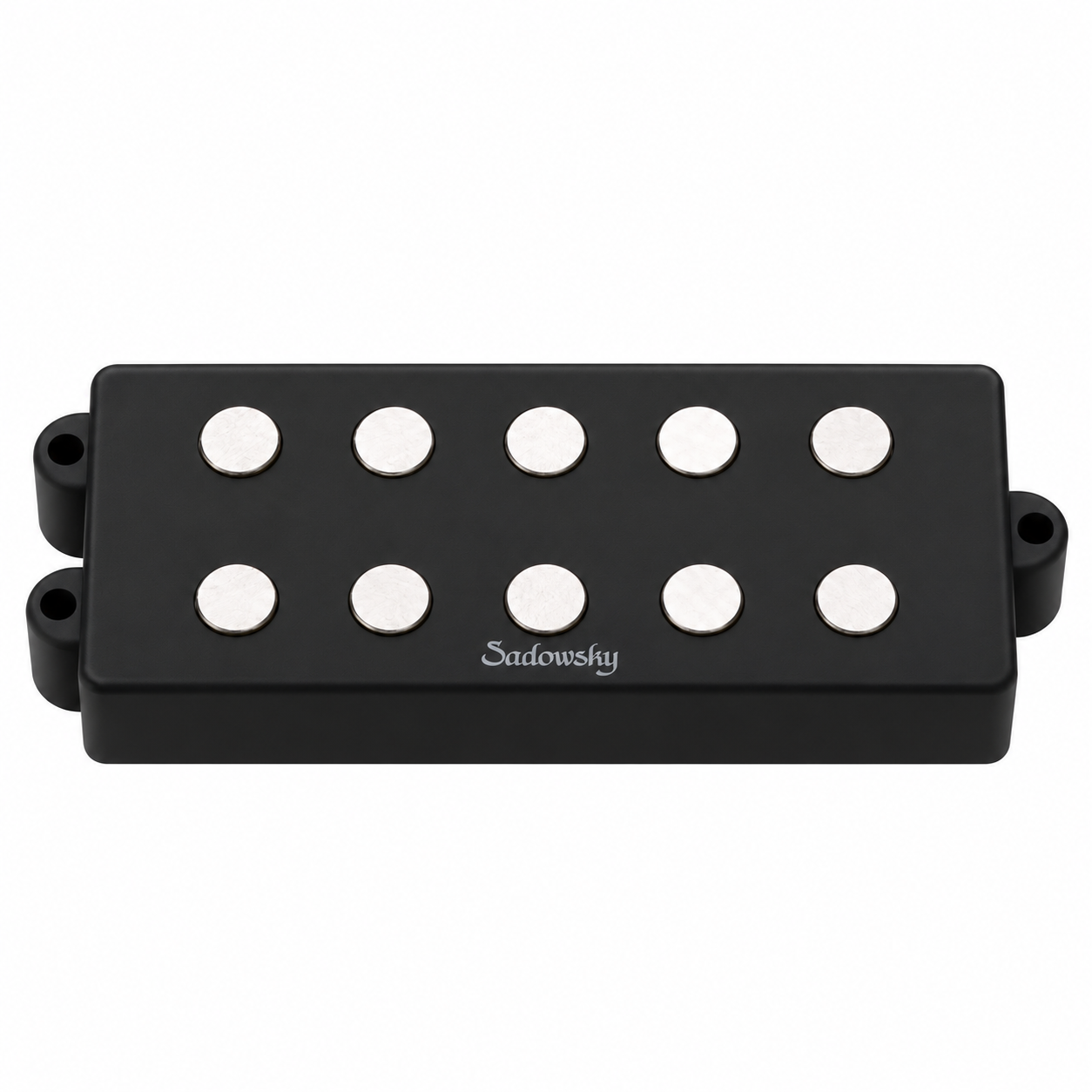

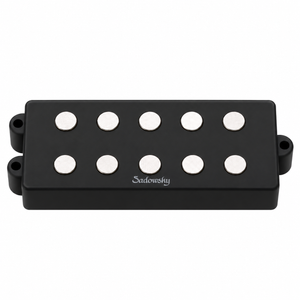

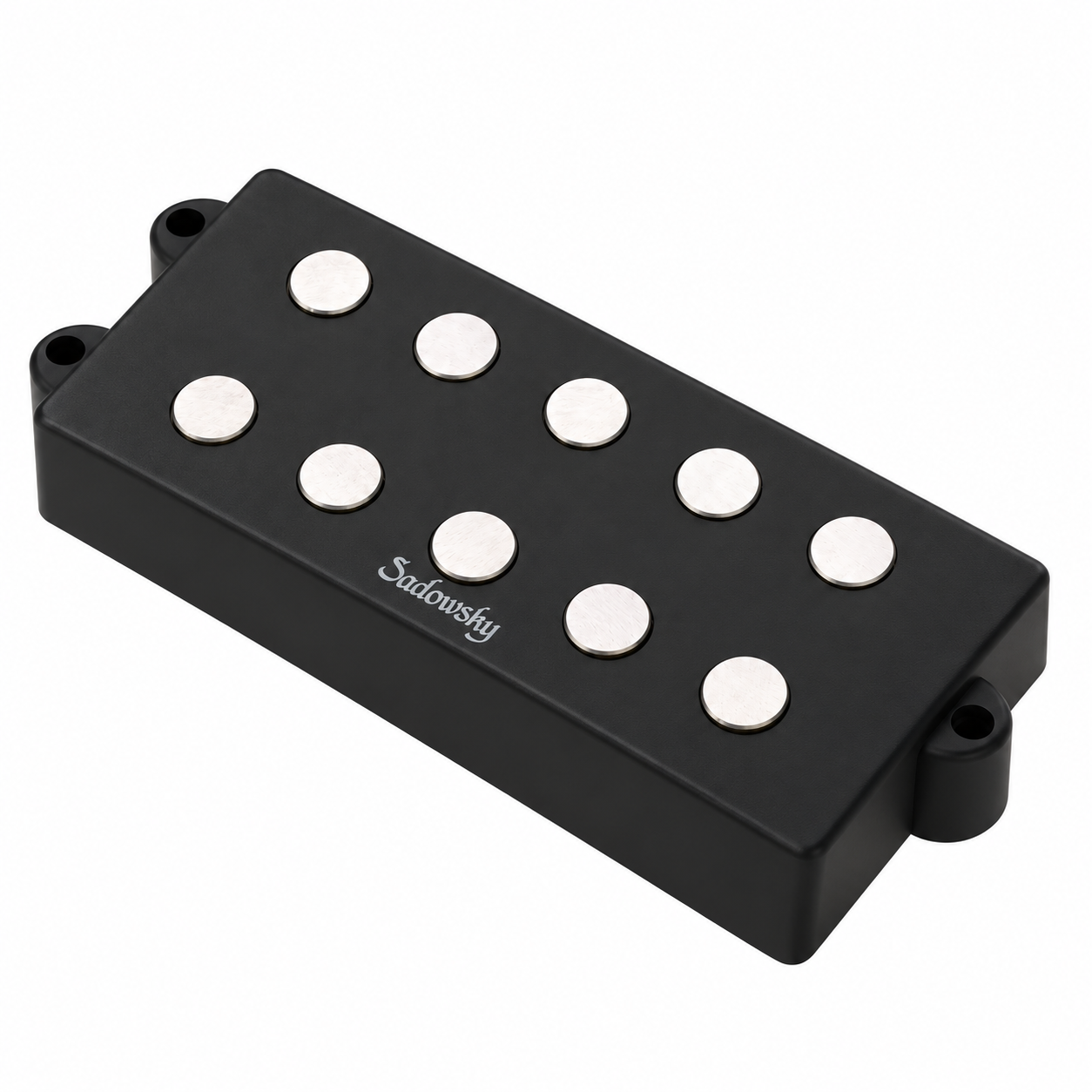

The Sadowsky SAC PU MM5 B is a passive 5-string M-Style humbucker designed specifically for the bridge position. Its quad-coil construction, Alnico V magnets and exposed pole pieces bring Sadowsky's pickup design to the familiar Music Man-style format, with the extended coverage needed for a 5-string bass.
The shielded 4-conductor cable provides wiring flexibility beyond a conventional 2-conductor pickup. Combined with its black soft-touch cover, exposed Alnico V pole pieces and Sadowsky logo, the MM5 B offers the genuine Sadowsky look and construction for a replacement pickup or custom M-Style bass project.
Please note: Five-string M-Style pickup dimensions, string spacing and body routes are not universal. Compare the dimensions below with your existing pickup and bass before ordering.
The SAC PU MM5 B uses four coils inside its M-Style housing and connects through a shielded 4-conductor cable. This gives the pickup a more flexible electrical architecture than a basic 2-conductor humbucker.
Quad-coil construction can support different coil combinations when paired with suitable switching and electronics. The pickup's factory wiring provides a standard humbucking connection, while alternative configurations should be planned using the appropriate Sadowsky wiring documentation. The exact switching options depend on the electronics and wiring used in your bass.
Pickup Size:
4.11" [104.50mm] Long
1.89" [48.00mm] Wide
Before Ordering:
Sadowsky notes that pickup string spacing and body routing can vary between manufacturers. Check the 5-string pickup dimensions, pole-piece alignment and your bass's existing route before installation.
Depending on the instrument, modification to the pickup route may be required. Sadowsky recommends that body modifications be performed by a trained professional.
Model / Article Number:
SAC PU MM5 B
Pickup Type:
M-Style Humbucker
Position:
Bridge
Strings:
5
Type:
Passive
Coil Structure:
Quad Coil
DC Resistance:
6.36kΩ
Magnet:
Alnico V
Pole Pieces:
Open
Cover:
Black soft touch with Sadowsky logo
Cable Type:
Shielded 4-Conductor
MM-Style Wiring:
The SAC PU MM5 B is a 5-string M-Style bridge pickup, but pickup routes and string spacing can vary between bass manufacturers. Compare its physical dimensions and pole-piece alignment with your existing pickup before ordering.
If you are not experienced with pickup wiring or soldering, Sadowsky recommends professional installation. Full installation and wiring information is available in the Sadowsky Pickup Installation Manual.
Bridge. Sadowsky specifies the SAC PU MM5 B as the bridge-position version of its passive 5-string M-Style quad-coil pickup.
Not necessarily. Pickup routes and string spacing vary between manufacturers. Compare the 4.11" x 1.89" [104.50 x 48.00mm] dimensions with your existing pickup and route before ordering.
The pickup itself is passive. It may be used as part of a compatible active bass electronics system, but the existing electronics and wiring must be compatible with the pickup.
